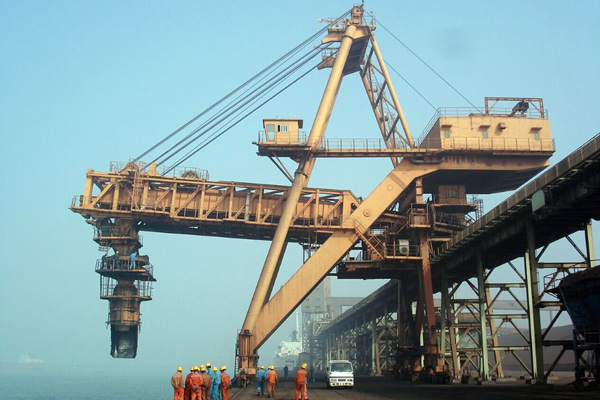

The mobile ship loading machine loader is a large-scale bulk materials handling machinery used for loading the bulk materials to ships in the wharf.
TAG: Material Handling Equipment
TAG: Material Handling Equipment
.jpg )
.jpg)
Container straddle carriers are used for stacking and moving containers. These straddle carriers have the ability to stack containers up to 4 layers. The normal capacity of Weihua straddle carriers is 35t.
Read More >
This railway container gantry crane is for the railway container logistics transport. The spreader is a 360° rotating spreader.
Read More >
This container spreader is a dedicated lifting tool of container cranes for bulk material container lifting, transport and discharging. It is a fully hydraulically driven container spreader equipped with tipping mechanism, telescopic mechanism, door opening and closing mechanism, etc.
Read More >The mobile ship loading machine loader is a large-scale bulk materials handling machinery used for loading the bulk materials to ships in the wharf. A ship loading machine consists of cantilever crane, cantilever crane belt conveyor, flexible chute tube, tripper car, traveling device, gantry frame, tower, pitching device, etc.
Features of Mobile Ship Loading Machine:
1. This machine runs along the wharf with good maneuverability, flexible operation and strong adaptability of ship type.
2. The cantilever crane can only make pitching and extension-retraction movement to cooperate with the traveling trolley via its extension and retraction for the sake of changing the charging position of chute tube, thus it can save the slewing drive and bearing, and makes the machine more simple and portable.
3. The machine has herringbone structure, adopt the tubular profiles instead of plate-girders as the main stress components, therefore, the plate shearing, welding and other procedures are reduced in the manufacturing process to reduce the manufacturing and processing difficulty and shorten the manufacturing period.
4. It uses the flexible chute tube to reduce the dust pollution during the ship loading.
5. The complete machine is intensively controlled by PLC, the main mechanisms is controlled by frequency control mode to realize stable operation without impact.
|
Equipment model |
Unit |
CSL |
CSL |
CSL |
CSL |
CSL |
CSL |
CSL |
CSL |
||
|
Production capacity |
t/h |
500 |
800 |
1200 |
1800 |
2600 |
3200 |
4000 |
4500 |
||
|
Material characteristics: |
Applicable materials |
Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials. |
|||||||||
|
Density |
t/m³ |
0.5-2.5 |
|||||||||
|
Particle size |
mm |
0-300 |
|||||||||
|
Traveling speed |
Work |
m/min |
10 |
||||||||
|
Dispatching vehicle |
30 |
||||||||||
|
Cantilever crane pitching |
Work |
° |
0～+16 |
||||||||
|
Non-working |
° |
70 |
|||||||||
|
Speed |
r/min |
2/4/6/8 |
|||||||||
|
Telescopic speed of cantilever crane |
r/min |
6(cantilever crane angle0～+16)/3(cantilever crane angle0～+35) |
|||||||||
|
Chute tube speed |
Rotation |
m/min |
0～6 |
||||||||
|
Stretch |
1 |
||||||||||
|
Conveyer |
Belt speed |
m/s |
1.25-4 |
||||||||
|
Bandwidth |
mm |
1.25-4 |
|||||||||
|
Rail gauge: |
m |
650-2400 |
|||||||||
|
Maximum wheel load |
KN |
250-350 |
|||||||||
|
Recommended steel track |
P50-Q80 |
||||||||||
|
Power supply mode |
Cable drum/safety sliding contact line |
||||||||||
|
Contact mode |
Cable drum/safety sliding contact line/wireless |
||||||||||
|
Control mode |
PLC program control, manual and single action |
||||||||||
|
Equipment model |
Unit |
CSL |
CSL |
CSL |
CSL |
CSL |
CSL |
CSL |
CSL |
||
|
Production capacity |
t/h |
500 |
800 |
1200 |
1800 |
2600 |
3200 |
4000 |
4500 |
||
|
Material characteristics: |
Applicable materials |
Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials. |
|||||||||
|
Density |
t/m³ |
0.5-2.5 |
|||||||||
|
Particle size |
mm |
0-300 |
|||||||||
|
Traveling speed |
Work |
m/min |
10 |
||||||||
|
Dispatching vehicle |
30 |
||||||||||
|
Cantilever crane pitching |
Work |
° |
0～+16 |
||||||||
|
Non-working |
° |
70 |
|||||||||
|
Speed |
r/min |
2/4/6/8 |
|||||||||
|
Telescopic speed of cantilever crane |
r/min |
6(cantilever crane angle0～+16)/3(cantilever crane angle0～+35) |
|||||||||
|
Chute tube speed |
Rotation |
m/min |
0～6 |
||||||||
|
Stretch |
1 |
||||||||||
|
Conveyer |
Belt speed |
m/s |
1.25-4 |
||||||||
|
Bandwidth |
mm |
1.25-4 |
|||||||||
|
Rail gauge: |
m |
650-2400 |
|||||||||
|
Maximum wheel load |
KN |
250-350 |
|||||||||
|
Recommended steel track |
P50-Q80 |
||||||||||
|
Power supply mode |
Cable drum/safety sliding contact line |
||||||||||
|
Contact mode |
Cable drum/safety sliding contact line/wireless |
||||||||||
|
Control mode |
PLC program control, manual and single action |
||||||||||
