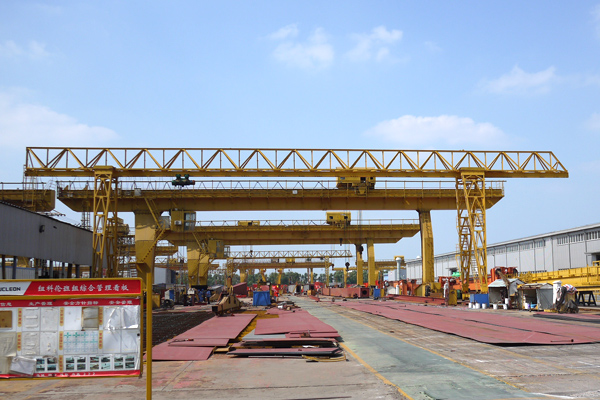

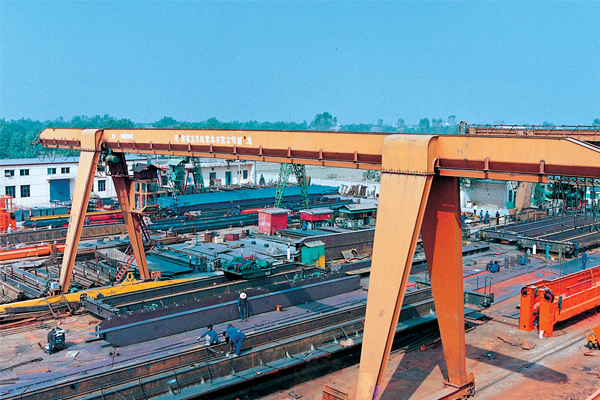

Read More >Gantry crane with electric hoist is a single beam gantry crane with electric hoist as lifting mechanism which can be CD1, MD1 model electric hoists. This gantry crane is a small and medium-sized gantry crane mounted on rails.
There are 2 type girders: box type girder and lattice type girder. The general lifting weight is 3-16t, span is 12-30m, and working temperature is -20~ +40 degrees.
This gantry crane with electric hoist is widely used outdoors and warehouses to lift or grab materials. There are two kinds of operation: ground control or air operation. The crane power supply can be through cable festoon and cable drum reel, and customers can choose one of them.
Crane Parts Packing and inland Transport
|
Lifting capacity |
T |
3 |
5 |
10 |
16 |
20 |
|||
|
Operation type |
|
Handle/remote control/cab |
|||||||
|
Speed |
Hoist lifting |
m/min |
8 ,8/0.8 |
8,8/0.8 |
7,7/0.7 |
3.5 |
3.5 |
||
|
Hoist travelling |
m/min |
20 |
20 |
20 |
20 |
20 |
|||
|
Crane travelling |
Handle /remote control |
20 |
20 |
20 |
20 |
20 |
|||
|
cab |
30,40 |
30,40 |
30,40 |
30,40 |
30,40 |
||||
|
Motor |
Hoist lifting |
Type /kw |
ZD41-4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 |
ZD151-4/13 ZDS11.5/4.5 |
ZD151-4/13 |
ZD152-4/18 |
||
|
Hoist travelling |
ZDY12-4/0.4 |
ZDY121-4/0.8 |
ZDY21-4/0.8×2 |
ZDY121-4/0.8×2 |
YZD-4/0.8×4 |
||||
|
trolley travelling |
Handle /remote control |
ZDY21-4/0.8×2 |
YZR132M1-6/2.2×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
|||
|
ZDY21-4/1.5×2 |
YZR132M2-6/3.7×2 |
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
||||||
|
Handle /remote control |
ZDR22-4/1.5×2 |
YZR132M2-6/3.7×2 |
YZR160M1-6/6.3×2 |
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
||||
|
ZDR24-4/2.2×2 |
YZR160M1-6/5.5×2 |
YZR160L2-6/11×2 |
YZR160L2-6/11×2 |
||||||
|
Electric hoist |
Type |
CD1/MD1 |
CD1/MD1 |
CD1/MD1 |
CD1 |
HC |
|||
|
Lifting height |
m |
6,9 |
|||||||
|
Work classifications |
|
A5 |
|||||||
|
Power |
|
380V 50HZ 3phase AC |
|||||||
|
Span |
m |
12,16,20,24,30 |
|||||||
