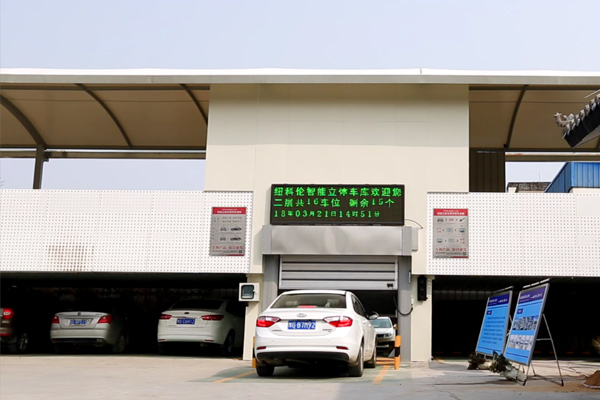

Read More >The double-layer automated parking garage is a new type parking system for outdoor use. The garage adopts car handover technology to realize automatic car parking. This product is suitable for residential areas, parking lots, roads, streets, Green belts, rivers and other places.


Features of Double Layer Automatic Parking Garage:
1. Adopts imported well-known parts, safe and reliable;
2. Two layer parking, floor 1 for SUV parking directly, floor 2 for car smart parking;
3. Door opened automatically within 2s, and the average car picking time is <90s;
4. Flexible layout, good environmental adaptability;
5. Unmanned service, touch screen to enter plate number to park/pick a car, convenient and fast;
6. Independent and spacious entrance, convenient access to the car, and ensure the safety of users;
7. Make full use of the parking space to realize multiple storage capacity.

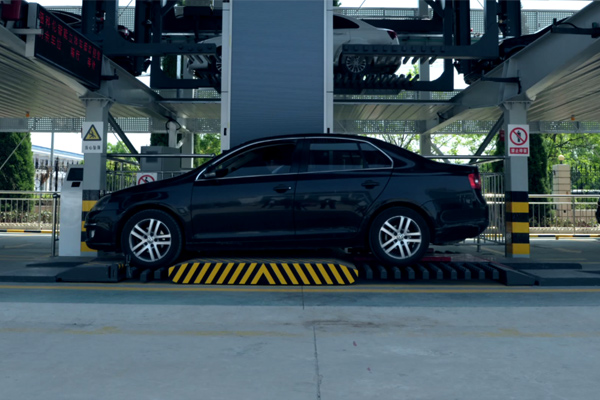

Parking Steps:
1. Stop your car on the lift panel, get off the car, scan card to confirm stopping;
2. Lift panel to move the car on the 1st layer;
3. Lift Panel to lift your car to the 2nd layer;
4. Lift panel to move your car laterally to available parking place.

Installation Environment:
1. Places such as parking lot, vacant lots, residential area, office building, etc.
2. Over the road/street;
3. On the greenbelt area;
4. Over the river;
5. Narrow space.




.jpg)











|
Model |
PPYSL Double Layer Parking Garage – Double Layer and Multiple Columns |
||||
|
Vehicle size at lower layer |
Length |
≤6000mm |
Vehicle size at upper layer |
Length |
≤5000mm |
|
Width |
≤1850mm |
Width |
≤1850mm |
||
|
Height |
≤2050mm |
Height |
≤1150mm |
||
|
Weight |
- |
Weight |
≤1700Kg |
||
|
Carriage Lift Speed |
0.9-9m/min |
||||
|
Carriage trolley travel speed |
2-20m/min |
||||
|
Carriage travel speed |
4.5-45m/min |
||||
|
Stacker lift speed |
1-10m/min |
||||
|
Time to pick a car |
≤120s |
||||
|
Safety device |
Emergency stop, photoelectric program control |
||||
|
Power Supply |
3P AC 50HZ 380V |
||||
|
Model |
PPYSL Double Layer Parking Garage – Double Layer and Single Columns |
||||
|
Vehicle size at lower layer |
Length |
≤6000mm |
Vehicle size at upper layer |
Length |
≤5000mm |
|
Width |
≤1850mm |
Width |
≤1850mm |
||
|
Height |
≤2050mm |
Height |
≤1150mm |
||
|
Weight |
- |
Weight |
≤1700Kg |
||
|
Carriage Lift Speed |
1-10m/min |
||||
|
Carriage travel speed |
5-50m/min |
||||
|
Stacker lift speed |
1-10m/min |
||||
|
Time to pick a car |
≤90s |
||||
|
Control |
IC card / Auto / Manual |
||||
|
Safety device |
Emergency stop, photoelectric program control |
||||
|
Power Supply |
3P AC 50HZ 380V |
||||
