Container straddle carriers are used for stacking and moving containers. These straddle carriers have the ability to stack containers up to 4 layers. The normal capacity of Weihua straddle carriers is 35t.
Read More >
This railway container gantry crane is for the railway container logistics transport. The spreader is a 360° rotating spreader.
Read More >
This container spreader is a dedicated lifting tool of container cranes for bulk material container lifting, transport and discharging. It is a fully hydraulically driven container spreader equipped with tipping mechanism, telescopic mechanism, door opening and closing mechanism, etc.
Read More >FEM/DIN standard gantry crane is a new generation gantry crane made in line with FEM, DIN and other European standards, with the features as follows:
1. European standards, leading technology.
2. Reliable quality, long service life.
3. Small size limit, low energy consumption, reducing plant construction investment.
4. The overall processing, high precision, low noise.
5. Modular design, easy transportation and installation.
6. Frequency control, smooth operation, high efficiency.
7. Electric anti-swing technology, accurate positioning, safe and reliable




Why Choose Weihua FEM/DIN Gantry Crane?
1. High standard design, advanced manufacturing process.
2. High-quality parts, reliable quality, long service life.
3. Light weight, small size, low construction costs, low energy consumption.
4. International leading crane anti-swing technology.
5. European quality, favorable prices.

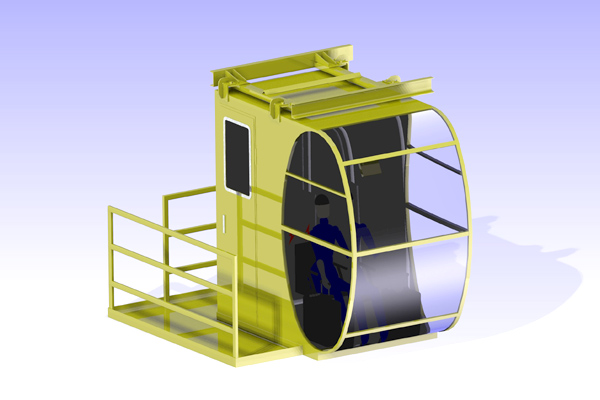

Driver cabin: space cabin with exquisite appearance and wide vision.

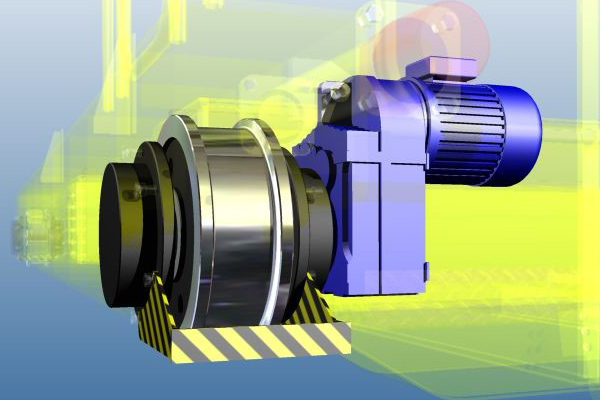

Wheel: high-quality alloy steel material with forging processing, high strength, good wear resistance, long service life.

Square steel track: partial rail layout, large load capacity; square steel track with greater contact surface and long service life.

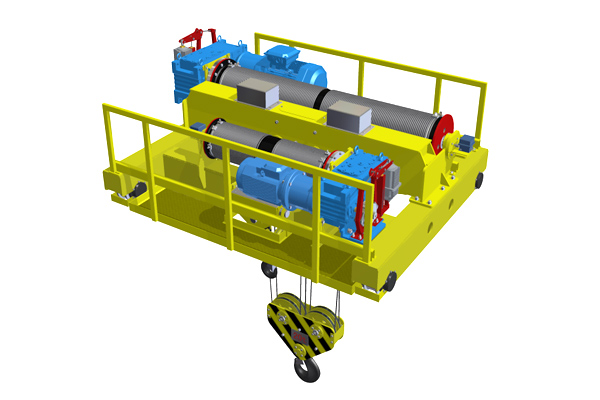

Trolley: flexible structure design, big carrying capacity
.jpg)
Hoisting mechanism: modular design with a variety of combinations.

Motor reducer connection: innovative connection, no extra constraints, high precision, smooth operation.

End beam wheel frame overall processing, high precision, and the wheel does not wear out the track.
Reducer and motor: high-quality parts, maintenance-free.
Wire rope: imported wire rope, large safety factor to ensure safety.
Electrical control: international leading anti-swing technology.

Crane Parts Packing and inland Transport




European Standard Single Beam Gantry Crane

European Standard Semi-Gantry Crane

FEM&DIN Standard Single Girder Gantry Crane

Gantry Crane Installation in Tanzania

Capacity 25 tons Gantry Crane








|
Capacity (t) |
Span (m) |
Lifting Height (m) |
Work Duty |
Main Hoist Speed |
Aux.Hoist Speed |
Cross Travel Speed |
Long Travel Speed |
Rail |
Total Power (Kw) |
|
10 |
18~35 |
10 |
A5 |
0.78-7.8 |
|
3.3-33 |
3-30 |
43kg/m |
21.74 |
|
20/5 |
18~35 |
10 |
A5 |
0.6-6 |
0.78-7.8 |
3.5-35 |
3-30 |
43kg/m |
39.7 |
|
32/5 |
18~26 |
10 |
A5 |
0.5-5.2 |
0.78-7.8 |
3.1-31 |
3-30 |
43kg/m |
59 |
|
26~35 |
12 |
||||||||
|
50/10 |
18~26 |
10 |
A5 |
0.4-3.9 |
0.78-7.8 |
3.6-36 |
3-30 |
43kg/m |
71.4 |
|
26~35 |
12 |
||||||||
|
75~1000 |
Customized |
||||||||
