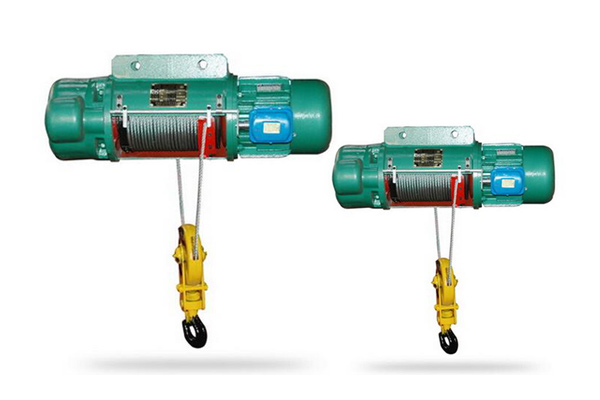

Large Tonnage Electric Hoist

Product Name: Large Tonnage Electric Hoist
Model: CD1/MD1
Type: Wire rope hoist
Features: Large capacity, designed in accordance with Chinese National Standard, good versatility, good price, low maintenance cost, compact structure, light weight, small size, simple operation.

Product Name: Large Tonnage Electric Hoist. Model: CD1/MD1. Type: Wire rope hoist. Features: Large capacity, designed in accordance with Chinese National Standard, good versatility, good price, low ma

TAG: Electric Hoist Crane Accessories

Tel:008618238636691
Email:weihua@craneweihua.com
PDFDownload

Chat Now Message

Description
Specification
Related Products
Related Case
Inquiry

Description

Product Name: Large Tonnage Electric Hoist

Model: CD1/MD1

Type: Wire rope hoist

Features: Large capacity, designed in accordance with Chinese National Standard, good versatility, good price, low maintenance cost, compact structure, light weight, small size, simple operation. Application: Used alone, or equipped on the overhead crane, jig crane and gantry crane.

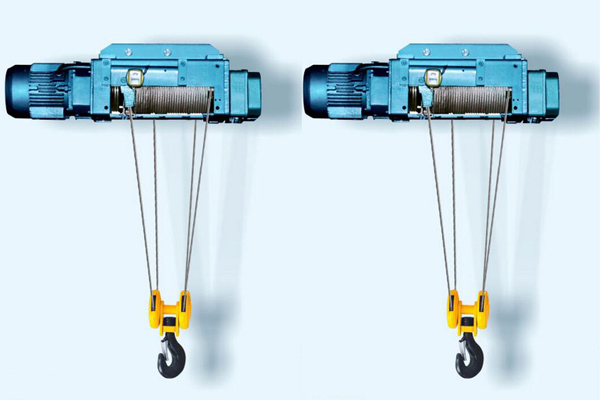

large-tonnage-electric-hoist

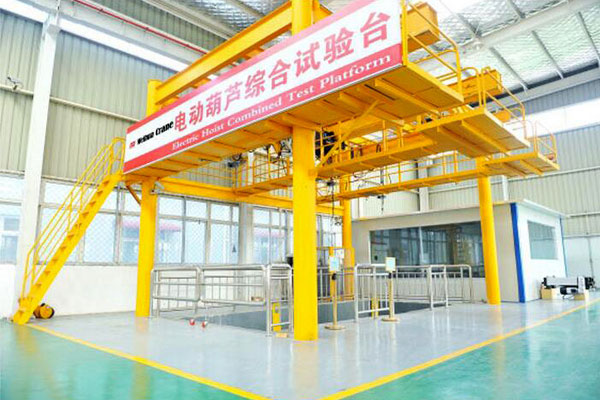

electric-hoist-test-platform

electric-hoist-handle

Electric Hoist Pendant

crane-radio-control

weihua-group

weihua-workshop

bridge-crane-factory-test

customer-visit

weihua-people

expo

welding-robot

wooden-cases

bridge-crane-girder-shipping

overhead-crane-installation

CE-BV

ISO-14001-18001

Specification

Model	Lifting Weight	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
CD 1T-12M	1	8	20	ZD22-4	1.5	ZDY11-4	0.2	172
CD 3T-12M	3	8	20	ZD41-4	7.5	ZDY12-4	0.8	597
CD 5T-12M	5	8	20	ZD41-4	7.5	ZDY21-4	0.8	597
CD 10T-12M	10	7	20	ZD51-4	13	ZDY21-4	0.8	1100
CD12T-12M	12	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 16T-12M	16	3.5	18	ZD51-4	13	ZDY21-4	0.8	1200
CD 20T-12M	20	4.2	14	ZD52-4	18.5	ZDY21-4	0.8	1930
CD 32T-12M	32	3	16	ZDx62-6	18.5	ZDY22-4	1.5	2950

Note: Lifting height can be customized i.e. 6m, 9m, 20m

Model	Lifting Height	Lifting Speed	Running Speed	Hoisting Motor		Running Motor		Weight
Model	t	m/min	m/min	Model	Power kW	Model	Power kW	kgs
MD 1T-12M	1	8/0.8	20	ZDS22-4	1.5/0.2	ZDY11-4	0.2	199
MD 3T-12M	3	8/0.8	20	ZDS41-4	7.5/0.8	ZDY12-4	0.8	654
MD 5T-12M	5	8/0.8	20	ZDS41-4	7.5/0.8	ZDY21-4	0.8	654
MD 10T-12M	10	7/0.7	20	ZDS51-4	13/1.5	ZDY21-4	0.8	1150
MD 12T-12M	12	3.5/0.35	18	ZDS51-4	13/1.5	ZDY21-4	0.8	1280
MD 16T-12M	16	3.5/0.35	18	ZDS51-4	13/1.5	ZDY21-4	0.8	1280
MD 20T-12M	20	4.2/0.42	14	ZDS52-4	18.5/2.2	ZDY21-4	0.8	1450
MD 32T-12M	32	3/0.3	16	ZDx62-6	18.5/2.2	ZDY22-4	1.5	2950
