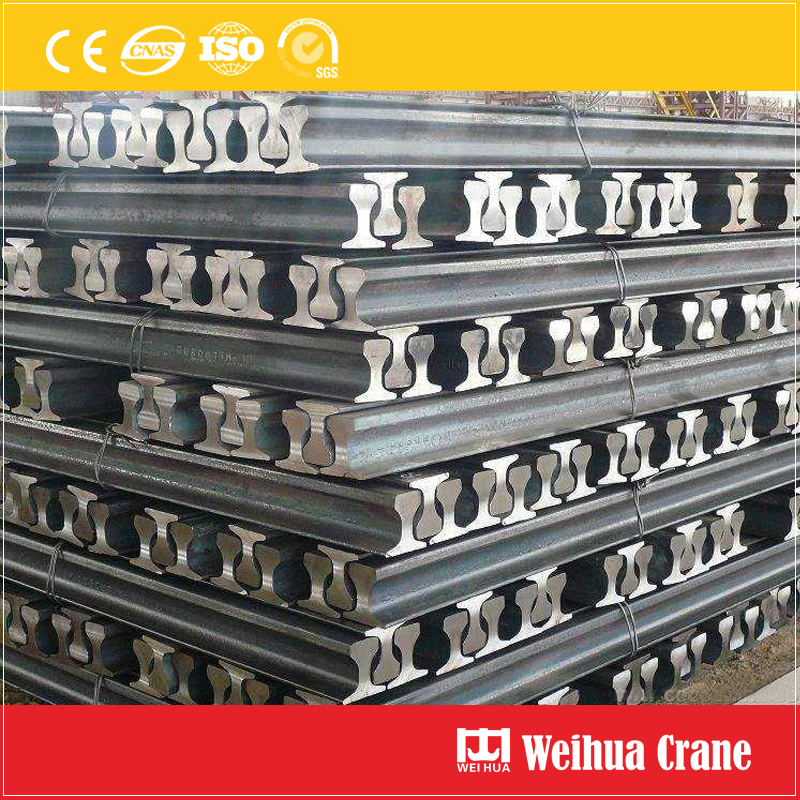

Crane track rail provides a continuous, smooth and low-resistance rolling surface for the crane wheels. It is employed to guide the wheels of the crane, bear the pressure of the wheel, and transmit it to the sleeper and ground. Crane track rails are commonly used for bridge crane, gantry crane, RMG crane, STS, portal crane, etc.

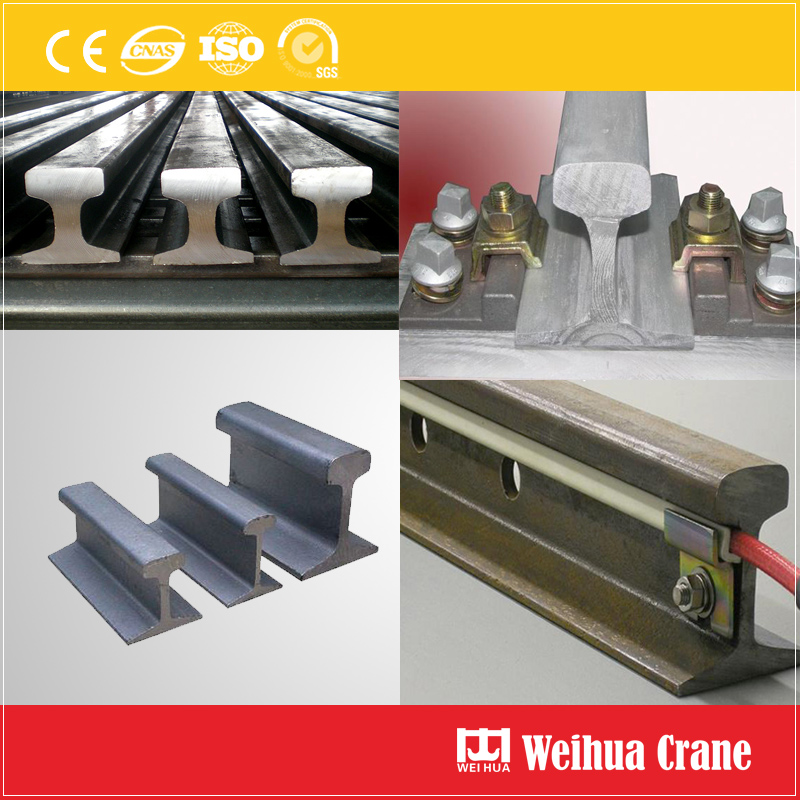

Weihua provide all kinds of crane track rail models such as QU70, QU80, QU120, etc. for the different cranes and special conditions. P shape rail is the most commonly used. The crane track system including rails, clips, bolts, nuts, etc.

Installation detection: Pulling wire rope to detect the linearity of rails. Pulling a diameter 0.5mm wire rope between two ends stop lever, and using a plumb bob to detect point by point, and the interval should be 2 meter. The rail joints could be cut into straight joint or 45°oblique joint.
